Filling Line Integration: How Fillers, Cappers, Conveyors, & Labelers Work Together

Most packaging problems are not machine problems. They are integration problems.

A filler that works perfectly in isolation can cause downstream chaos if the conveyor cannot keep pace. A capper that applies consistent torque on one container type may struggle when the labeler upstream has already slowed the line. A labeler that places labels with precision will produce crooked labels if the container is not arriving at the right orientation, at the right speed, every time.

The machines on a liquid packaging line do not operate independently. They operate as a system, and that system is only as reliable as the weakest link in the chain.

In this article, we cover how fillers, cappers, conveyors, and labelers each function, what they require from the other stations around them, and what integration decisions have the biggest impact on line performance, output consistency, and long-term uptime.

In this guide:

• What Filling Line Integration Actually Means
• The Role of the Liquid Filler
• The Role of the Capper
• The Role of Conveyors
• The Role of the Labeler
• How These Machines Work Together
• FAQS

What Filling Line Integration Actually Means

Line integration is the process of selecting, configuring, and connecting multiple pieces of packaging equipment so they operate together as a coordinated system rather than as individual machines.

The goal of integration is not just to connect machines. It is to make sure those machines communicate, complement each other's speeds, and share a common understanding of what the container needs at every stage.

When integration is done well, the line runs smoothly. Containers move at a consistent pace. Each station has what it needs when it needs it. Downtime is predictable and planned rather than reactive and costly.

When integration is done poorly, the problems compound. A backup at one station creates pressure on the station before it. A speed mismatch between two stations creates gaps or jams. A container that arrives at the wrong height, in the wrong orientation, or at the wrong interval causes errors that ripple through the rest of the line.

Understanding how each machine functions, and what it needs from its neighbors, is the foundation of a well-integrated packaging line.

The Role of the Liquid Filler

The filler is the central station on most liquid packaging lines. Every other machine is either preparing containers to receive product or processing containers after they have been filled. That makes the filler the point around which the rest of the line is built.

What the Filler Needs from the Line

A filler cannot perform well if the inputs are inconsistent. The containers arriving at the fill head need to be:

• Clean and free of debris or residue
• Positioned correctly under each fill nozzle
• Arriving at a consistent interval that matches the filler's cycle rate
• Uniform in size and shape, within the tolerances the machine was configured for

What the Filler Delivers Downstream

After filling, the container leaves the filler with product inside and needs to be handled carefully before the cap is applied. An overfilled container can cause sealing problems at the capper. A container that is tilted or off-center coming off the filler may misfeed into the capping station.

The filler's output speed also sets the rhythm for the entire line. If the filler runs at 40 containers per minute, every downstream station needs to be capable of handling at least that rate. If any downstream station cannot keep pace, the line backs up and the filler is forced to stop and start repeatedly, which creates its own accuracy and wear problems.

The filler type matters too. Different types of filling machines handle different viscosities, foaming behaviors, and fill volume ranges differently, and the wrong match creates problems no amount of integration work can fully fix. Product viscosity is usually the deciding factor.

The Role of the Capper

The capper's job is straightforward: apply a closure to every container, consistently and correctly. In practice, that job depends heavily on what the rest of the line is doing.

Different types of cappers each handle different closure types, and each one has its own container handling requirements. What they share is this: they all need containers to arrive at the right height, at the right speed, and with the cap either pre-placed or fed automatically from a cap sorter or elevator. If the conveyor is not level, or if containers arrive tilted because a guide rail is set incorrectly, the capper will produce inconsistent results regardless of how well it is calibrated.

What the Capper Needs from the Line

A capper cannot perform well if the inputs are inconsistent. The containers arriving at the capping station need to be:

• Upright and centered, within the tolerances the machine was configured for
• Arriving at a consistent interval that matches the capper's cycle rate
• Free of product residue on the sealing surface
• Fitted with a cap that has been correctly fed and seated, whether by a cap sorter, elevator, or operator

What the Capper Delivers Downstream

Capping problems are often blamed on the capper, but the root cause is frequently upstream. A container that arrived at the wrong angle may receive a crooked cap. A cap that was not fed correctly may be partially seated before it reaches the capper, causing the spindle or chuck to apply torque to an already-misaligned closure.

The capper also creates downstream consequences. A loose or cross-threaded cap may leak on the conveyor or cause label adhesion problems at the labeler. A cap applied too tightly may generate customer complaints. Both are preventable with proper integration.

The Role of Conveyors

Conveyors are the connective tissue of the packaging line. They do not fill, cap, or label anything. What they do is control the pace, spacing, and orientation of every container as it moves from one station to the next. That makes them one of the most important integration factors on the entire line.

Different types of conveyors all serve the same fundamental role: moving containers from one station to the next at the right speed and in the right condition. The right choice depends on your product, your environment, and your sanitation requirements.

What the Conveyor Needs from the Line

A conveyor cannot pace the line correctly without accurate speed references from the filler and downstream stations. The key inputs are:

• A defined filler cycle rate to set the conveyor's baseline speed
• Container dimensions so guide rails, transfer plates, and accumulation tables can be configured correctly
• Consistent container weight and shape, so speed settings do not need to be constantly adjusted
• Changeover information whenever a container size or product changes

What the Conveyor Delivers Downstream

A conveyor that runs too fast pushes containers into the fill head before the previous fill cycle has completed. One that runs too slowly creates gaps and forces cappers and labelers to sit idle. A conveyor with worn or incorrectly set guide rails lets containers arrive at each station slightly off-center, which affects nozzle alignment at the filler, cap placement at the capper, and label positioning at the labeler.

The conveyor also handles the transitions between stations, which are among the most failure-prone points on any line. Dead plates, transfer sections, and guide rails that are not set correctly for the container cause tipping and jamming at exactly the moments when containers need to be most stable.

The Role of the Labeler

The labeler is often the last primary packaging station before the product moves to secondary packaging or shipping. It is also one of the most sensitive to upstream variation, because label placement accuracy depends on containers arriving at a consistent speed, in a consistent orientation, and at a consistent height.

Different types of labelers have different container handling requirements, but all of them share the same dependency: the container needs to arrive correctly every time. Any deviation from the expected position shifts the label, and even small shifts are visible on the finished product.

What the Labeler Needs from the Line

A labeler cannot place labels accurately if the inputs are inconsistent. The containers arriving at the labeling station need to be:

• Upright and centered on the conveyor, within the tolerances the machine was configured for
• Moving at a consistent speed that is synchronized with the labeler's application rate
• Clean and dry on the exterior
• Oriented correctly relative to the label applicator, particularly for front-and-back or top labeling applications

What the Labeler Delivers Downstream

A misapplied label is not just an aesthetic problem. In regulated industries, a label that covers a required disclosure, shifts the lot code out of position, or fails to adhere correctly can create compliance issues. In retail environments, a crooked or wrinkled label signals poor quality before the product is ever opened.

The labeler is also the station most likely to surface problems that originated upstream. A container with product residue on the outside is a filling problem. A container that arrives tilted is a conveyor problem. Both show up as labeling failures, which is why integration issues are rarely confined to a single station.

Label placement accuracy is the sum of everything that happened upstream. Container cleanliness, fill accuracy, cap application, conveyor alignment, and conveyor speed all contribute to whether the label goes on correctly.

How These Machines Work Together

It is worth stepping back and looking at the filler, capper, conveyor, and labeler as a system rather than four separate pieces of equipment. On a well-running line, they hand off to each other in a continuous sequence, and each one depends on the others to do its job correctly.

Here is how that sequence plays out on a typical liquid packaging line:

1. The conveyor delivers containers to the filler infeed at a consistent interval, controlled by guide rails and a timing screw that meters containers one at a time into the fill position.
2. The filler completes its fill cycle and releases the container back to the conveyor. The filler's cycle rate sets the pace for everything downstream.
3. The conveyor carries the filled container to the capping station. Speed, guide rail width, and transfer plate design determine whether the container arrives upright and centered.
4. The capper applies the closure. A cap sorter or elevator feeds caps automatically. The capper needs the container at the right height and orientation.
5. The conveyor moves the capped container to the labeler. Any speed variation or container drift at this stage will shift label placement.
6. The labeler applies the label and the container moves to secondary packaging, coding, or shipping.

Where the System Breaks Down

The handoffs between stations are where most integration problems originate. The table below shows the most common failure points and what is usually causing them.

Transition Point	Common Failure	Root Cause
Infeed conveyor to filler	Containers back up or misfeed	Conveyor speed not matched to filler cycle rate
Filler to outfeed conveyor	Containers tip or go off-center	Transfer plate gap or guide rail width incorrect
Conveyor to capper infeed	Caps applied crooked or loose	Container arriving tilted or at wrong height
Capper to conveyor	Leaking caps contaminate conveyor	Overfill at filler or cap not fully seated
Conveyor to labeler	Labels misaligned or wrinkled	Conveyor speed not synchronized with label applicator

Speed, Accumulation, & Controls

For the sequence above to run without chronic stoppages, three things need to be true across the entire line.

1. Speed matching: Every station needs to be capable of handling at least the output rate of the filler. If the filler runs at 50 containers per minute but the capper is rated for 35, the effective line speed is 35. Adding fill heads will not change that number. The constraint is the capper.

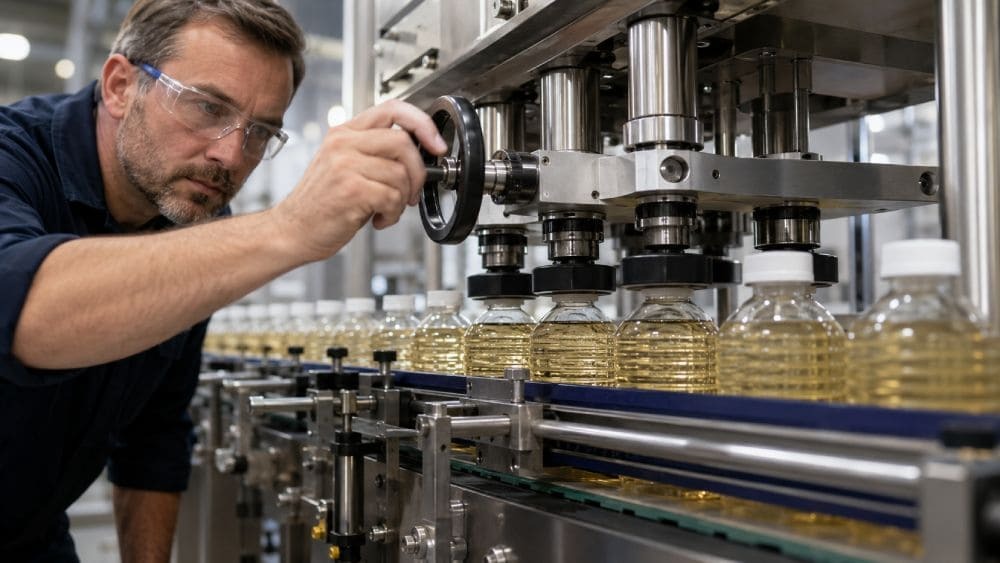

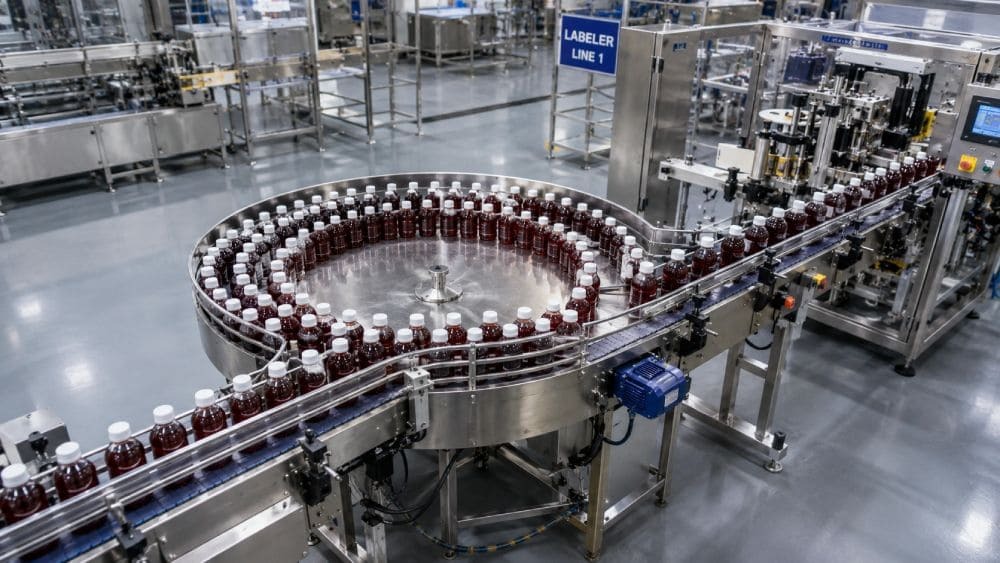

2. Accumulation: No line runs at perfectly uniform speed at every station at all times. Accumulation tables between stations absorb minor speed variations without forcing the entire line to stop. A line without adequate accumulation is fragile; a brief pause at one station cascades into stoppages across the rest.
3. Controls: Programmable logic controllers (PLCs) coordinate machine speeds, manage start-stop sequences, and allow operators to store fill parameters for each product and container combination. When one station stops, a well-configured control system signals upstream stations to pause and lets downstream stations continue running on accumulated containers. Without coordinated controls, every stoppage requires manual intervention, which adds labor, creates inconsistency, and increases the risk of containers being damaged during the interruption.

Pro Tip: Before purchasing any piece of equipment, map out the rated capacity of every station and confirm they are matched to each other, not just to your target output.

FAQs About Filling Line Integration

What Does Filling Line Integration Mean?

Filling line integration refers to the process of selecting, configuring, and connecting packaging equipment so that fillers, cappers, conveyors, labelers, and other stations work together as a coordinated system. A well-integrated line delivers consistent output, predictable uptime, and the ability to scale without major disruption.

How Do I Know If My Packaging Line Is Properly Integrated?

A properly integrated line runs at a consistent speed without chronic backups or stoppages, produces containers that meet fill accuracy, cap torque, and label placement specifications across the full shift, and recovers from minor interruptions without requiring manual intervention at every station. If any of those conditions are not being met consistently, integration is worth reviewing.

What Is the Most Important Factor in Filling Line Integration?

Speed matching is the single most important factor. Every station on the line needs to be capable of handling the output rate of the filler. When any station cannot keep pace, it creates a bottleneck that limits the entire line regardless of how capable the other machines are.

Can I Add Equipment to an Existing Line Without Redesigning the Whole System?

Yes. Adding a station to an existing line is possible as long as the new equipment is compatible with the existing conveyor, the speeds can be matched, and adequate accumulation exists to absorb the transition. The risk is that adding one station sometimes reveals that another station was already running at its limit and can no longer keep pace with the updated line configuration.

What Is Line Balancing and Why Does It Matter?

Line balancing means configuring every station on the line to operate at compatible speeds so that no single station becomes a chronic bottleneck. A balanced line maximizes throughput, reduces stop-and-start cycling that causes wear and accuracy problems, and makes the line easier to operate and maintain.

Should I Buy All My Packaging Line Equipment from One Supplier?

Sourcing all equipment from a single supplier simplifies integration because the machines are designed to work together and the supplier is accountable for the complete system's performance. It is not always possible or necessary to source everything from one supplier, but when sourcing from multiple suppliers, compatibility must be confirmed in detail before purchasing, not assumed.

How Do I Increase Throughput on an Integrated Filling Line?

The first step is identifying the actual constraint, which is the slowest station on the line. Improving any other station will not increase overall throughput until the constraint is addressed. For a detailed breakdown, see our guide on how to increase filling line throughput without sacrificing accuracy.

Build a Well-Integrated Filling Line with E-PAK Machinery

A filling line that performs well is not the result of buying good machines. It is the result of selecting the right machines, configuring them correctly, and making sure they are designed to work together from the start.

At E-PAK Machinery, we build liquid filling machines, capping equipment, conveyors, labelers, and supporting equipment for a wide range of industries and applications. Whether you are building a new line, adding a station to an existing one, or troubleshooting a line that is not performing the way it should, we can help you evaluate your options and identify the configuration that fits your product, your containers, and your production goals.

We understand that integration is not just a technical challenge. It is a production challenge, and getting it right has a direct impact on output, waste, labor, and uptime. Our team works through the details with you before recommending equipment, not after.

Are you planning a new filling line or looking to improve an existing one? Contact us today to discuss your application and explore the equipment and integration options that make sense for your operation.
